Analog Soul

Signature warm analogue Xone sound combined with class-leading digital connectivity, 5 pin midi sync/out, x-link, the classic Xone filter system, a quality soundcard, 4+1 channels, and a replaceable crossfader.

Blank

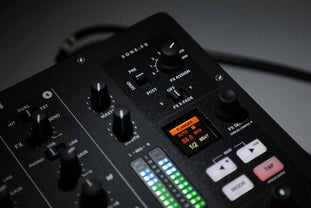

Powerful Internal FX

The built in Xone:Xcite FX suite of performance-focused delays, reverbs, modulators, flangers and distorters are all assignable through simple hands-on control for fine-tuning the FX and expressing the DJ’s inner creativity.

Blank

Connect to It All

The Send/Return feature allows for the connection of external FX hardware. Connect your laptop or computer to the premium internal 20 channel 24bit 96kHz USB soundcard for easy integration into digital DJ workflows,

"I have nothing but positive feedback on this mixer. It sounds awesome! Its loaded with plently of fun features & effects! The unit itself is super robust and it works flawlessly in every situation. I want to thank dj techtools support staff for their impeccable customer service and for recommending this mixer to me. I couldnt be happier with this amazing mixer!"

Img_0128
January 6, 2017

Technical Details


Features

• 4+1 channel analogue mixer
• Internal Xone:FX Engine with Xone:Xcite FX library
• Classic Xone VCF Filter with HPF, BPF, LPF and resonance Control
• Four channels with 3-source Phono/Line/USB inputs
• Dedicated Send/Return and Master Insert mode connections for External FX (Line or Hi-Z)
• Dedicated Microphone/Aux input/USB Return channel with peak Indicator
• 20 channel 24bit 96kHz USB2 internal Soundcard
• 3-band kill EQ
• Xone:Sync MIDI clock engine
• 12-segment signal level monitoring
• 22dB pro standard headroom
• 60mm VCA channel faders
• Balanced main mix out on XLR
• Independent booth out on 1/4” Jack
• Record out (USB and unbalanced RCA)
• Crossfader curve switch (three settings)
• Upfader curve switch (three settings)
• 2 GND earthing terminal posts for turntables
• 3.5mm and 1/4″ headphone outputs with Split Cue option
• X:LINK for plug n’ play connection to Xone:K series controllers
• Innofader Compatible (Innofader Pro 2)

Full Specs

Type Analog
Channels 4 + 1
EQ 3-band / Total Kill (CH 1-4 + CH A)
USB  Soundcard
20 Channel (10 in / 10 out)
USB2 / Class Compliant
24bit / 96kHz
1 x MIDI IN
1 x MIDI Out
Line Inputs
4 x RCA (CH 1-4)
1 x 1/4" TRS (CH A) Mono/Stereo
Phono Inputs
4 x RCA (CH 1-4)
LN/PH  Switch  for DVS
USB  Inputs 5 x USB  (CH 1-4 + CH A)
Mic Input
1 x XLR
Master Output
1 x XLR (Balanced)
1 x RCA (Un-balanced)
Booth Output
1 x 1/4" TRS
Record Output
1 x RCA (Un-balanced)
Master Insert
1 x 1/4" TRS
MIDI Sync/Out
1 x 5-Pin DIN
DIN Offset Control
Send/Return I/O
1 x 1/4" TRS Send
1 x 1/4" TRS Return
1 x LN/Hi-Z Switch
Internal Xone:FX Yes
Hybrid  FX  Mode Yes  (Internal < Dual > External)
FX Send 1 x Pre/Post Selectable (CH 1-4 + CH A)
Filter
1 x VCF Filter
HPF / BPF / LPF
Adjustable Frequency & Resonance
Assignable CH 1-4 + CH A + External Return
X-Link 1 x RJ45
Headphones
1 x 1/4"
1 x 3.5mm
Split Cue Monitoring
Channel  Faders
60mm VCA / Replaceable
Channel Fader Curve
3 Types
X-Fader 45mm VCA / Replaceable / Innofader Compatible
X-Fader Curve Settings 3 Types
MIDI Clock Send + Receive
Start / Stop / Pause / Tempo Bend (-/+)
MIDI Assignable Yes ( MIDI CC / MIDI Notes)
BPM  Detection Auto / Manual / Tap Tempo
Earth  Ground  Terminals x 2
Headroom 20dB

Power / Weight

ACMains
100to240V
AC50/60Hz
Consumption 35W max
Mains Adaptor 3 pin IEC socket with cable clamp
Fuse Rating 250V AC T1AL 20mm
Height 4.3"
Width 12.6"
Depth 14.8"
Weight 11.5lbs.
