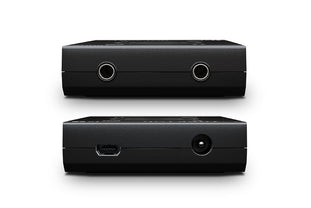

Palm-Sized Audio Card
The Audio 2 takes up the right amount of space - barely any. It's about the size of a deck of cards, and priced affordably. There are volume dials for each channel as well as stereo output level meters.
High Quality Audio
Using the same A to D converters as its bigger brothers, the Audio 6 and Audio 10, this version sacrifices the number of inputs/outputs but not sound quality. Either output can be used for headphones with automatic impedance recognition.
Also Perfect For iOS
The Audio 2 MK2 comes with a 30-pin cable for connecting to an iPad or iPhone - perfect for an ultra-mobile gig. With the optional power adapter, the Audio 2 can also charge your iOS device at the same time.
"it´s my first sound card and well is very good. more than i expected, i´m very happy "
"expecting this in by tomorrow got it for a great price on here during Black Friday $75 bucks! for that price I really cant lose.. only question I may have if its compatable w/ my maschine.. I'll soon find out I guess "
Technical Details
CONVERTERS AND OUTPUTS:
| Audio Converters (Inputs A/D) | |
|---|---|
| Channels (A/D, D/A) | 0, 4 |
| Sample Rates | 44.1, 48 kHz |
| Bit Resolution | 24-bit |
| Line Outputs | |
| Maximum Output Level | +11.7 dBu |
| Dynamic Range (A weighted) | 103 dB |
| THD+N (Max. Level) | 0.004 % |
| Frequency Response, +/-1.4 dB | 20 Hz - 20 kHz |
| Cross Talk @ 1 kHz to next channel | -105 dB |
| Headphone Output | |
| Load Impedance | 28 Ohms - 600 Ohms |
| Maximum Output Level | +5 dBu @ 32 Ohms |
| Dynamic Range (A weighted) | 102 dB |
| THD+N (Max. Level, high Imp, 100 Ohms) | 0.004 % |
| Frequency Response, +/-1.4 dB | 20 Hz - 20 kHz |
SIZE + WEIGHT:
- Dimensions: 16.2 x 55 x 84.3 mm / 0.63" x 2.17" x 3.3”
- Weight: 68g / 0.15 lbs
- Supported Drivers: ASIO®, Core Audio, DirectSound®, WASAPI
POWER:
- Power Supply Via USB 2.0 interface,
- 5V 500mA bus power from a computer – no external PSU is required.
- Low-power operation possible from iOS devices. Full operation with iOS devices is achieved with use of an optional power supply (this increases output volumes and also charges the battery of the iOS device).
Why DJ TechTools?
"it´s my first sound card and well is very good. more than i expected, i´m very happy "
"expecting this in by tomorrow got it for a great price on here during Black Friday $75 bucks! for that price I really cant lose.. only question I may have if its compatable w/ my maschine.. I'll soon find out I guess "
“I bought this sound card to replace my NI Audio Kontrol 1. I needed a new i/o fr DJing, and didn't necessarily need all the ins and outs needed for studio use. This little sound card packs a punch for a great price! Solid construction, Hi-Q sound, and ...” [read more]
"I bought this sound card to replace my NI Audio Kontrol 1. I needed a new i/o fr DJing, and didn't necessarily need all the ins and outs needed for studio use. This little sound card packs a punch for a great price! Solid construction, Hi-Q sound, and amazingly small package all makes for an easy and dependable set up. I can slide it right in a compartment in my gig bag and off we go! Plus, it ships with a full version of TP2! Couldn't get any better!"
“An excellent entry level sound card. For those who don't have much gear yet and only need the two outputs, it's a great little card. My only complaint is that it does NOT work well with USB3 ports, and every time I tried to use it with a USB3 port, I g...” [read more]
"An excellent entry level sound card. For those who don't have much gear yet and only need the two outputs, it's a great little card. My only complaint is that it does NOT work well with USB3 ports, and every time I tried to use it with a USB3 port, I got a blue screen of death. Luckily my laptop has both USB2 and USB3 ports, so it works out in the end."
“This Audio Interface is perfect for any software based DJ! It is super simple and small. For the price and sound quality you can't go wrong! My only personal and very small complaint is I wish it had a Mic input. But besides that tiny issue I know I ca...” [read more]
"This Audio Interface is perfect for any software based DJ! It is super simple and small. For the price and sound quality you can't go wrong! My only personal and very small complaint is I wish it had a Mic input. But besides that tiny issue I know I can bring this thing to clubs and rely on it to preform at a professional level every time. "
“Im just a new dj and my mixing skills arent pro yet, but when i plugged the Audio 2 Dj into my set it packed a punch! I had the crowd loving me as if i were afrojack! This audio interface is great for a controllerist and definitely worth its price. Wor...” [read more]
"Im just a new dj and my mixing skills arent pro yet, but when i plugged the Audio 2 Dj into my set it packed a punch! I had the crowd loving me as if i were afrojack! This audio interface is great for a controllerist and definitely worth its price. Works great with my little setup.
-Dj S.I.D."
