Faithful Reproduction

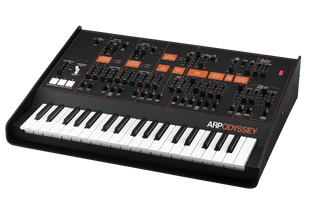

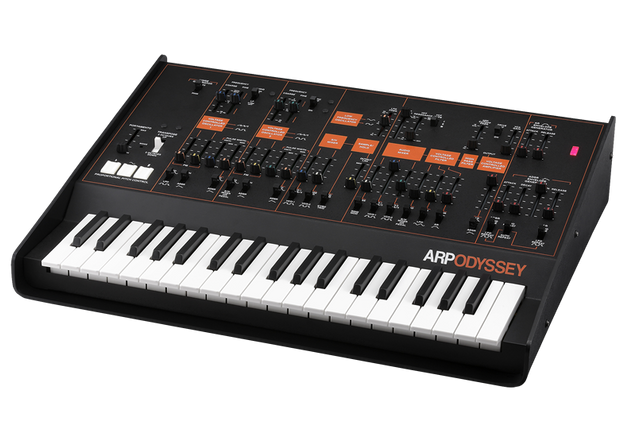

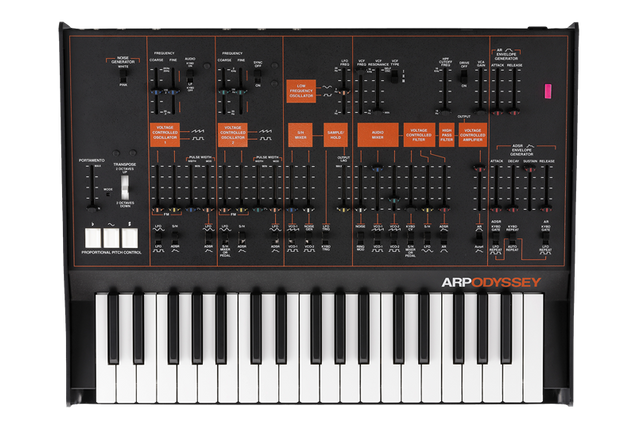

Korg and David Friend, the co-founder of ARP Instruments, have completely reproduced the original circuitry and were able to recreate the sound and feel of the original down to the last detail.


3 Powerful Filter Options

Flick a switch to change filters. Type I is a 2-pole, with an open sound and biting resonance. Type II is a 4-pole ladder filter: round, fat, and rich - great for basses. Type III is a 4-pole design but smoother and silkier when you push the resonance.


Great for any sound

The ARP Odyssey gained a following for its distinctive sound, which came in a wide range - shrieking leads, industrial effects, & squelchy basses. It's also duophonic - you can play two notes at once (each one commandeering one of the two oscillators).

"I clearly remember its iconic sounds from my childhood. I want it so much thou I don't need it at all. "

November 20, 2017

Technical Details


A faithful, 86%-scale re-creation of a classic synth
37-note Slimkey keybed (no velocity sensitivity, no aftertouch - just like the original)
Monophonic; two voices for duophonic (one oscillator each)
Proportional Pitch Control pads; modulation pad
White/pink noise generator
Portamento speed control
Two VCOs with Sawtooth, Square, and Dynamic Pulse waveforms (with PWM)
Lowpass filter (resonant): 12 and 24dB/octave; frequency range: 16Hz-16kHz
Voltage Controlled Amplifier (VCA), dynamic range: 80dB
Ring Modulator (digital); Sample & Hold
ADSR and AR envelope generators
Low (1/4" TS) and High (XLR) output jacks; 1/4" TRS headphone jack
External Audio Input jack (1/4" TS)
MIDI In (DIN); USB (Type B)
1/8" TS CV In/Out, Gate In/Out, and Trig In/Out patch points
Pedal and Portamento footswitch inputs
Dedicated semi-hard case included free


Audio Inputs : 1 x 1/4" (external audio in)
Audio Outputs : 1 x 1/4" (-10 dBu output ), 1 x XLR (+4 dBu output), 1 x 1/4" (headphones)
USB : Type B
MIDI I/O :  In
Pedal Inputs:  1 x 1/4" (pedal), 1 x 1/4" (footswitch)

Weight + Dimensions

Height:  4.72"
Width : 19.76"
Depth : 14.96"
Weight : 11.02 lbs
